Analog Amplifiers

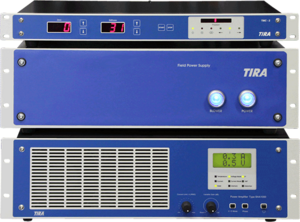

Analog amplifier BAA 1000-ET 1200 VA

  • Designed with state-of-the-art MOSFET transistors
  • Sine output power up to 1200 VA
  • Selectable operation in current or voltage mode
  • Backgroundlit multifunctional display
  • Safety management system monitors temperature, overcurrent, clipping and overtravel
  • High Signal to noise ratio of >90 dB
  • Low distortion factor <0.1%
  • Selectable operation voltage range (factory-preset: 100V, 120V, 230V)
  • Adjustable current limit
  • Operation with all permanent magnet driven shakers on the market
  • Optional connection for zero-point regulation (TMC) (for BAA 500 and up)

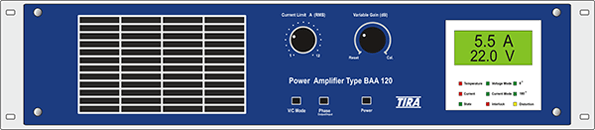

Amplifier BAA 120 (Sine output power 120 VA)

Analog Amplifier BAA 120
Sine output powerRMS: 120 VA
Frequency range: DC – 20000 Hz
Total mass: 9 kg
Dimensions WxHxD: 440 x 90 x 290 mm
Data Sheet Amplifier BAA 120

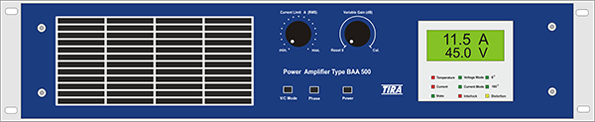

Amplifier BAA 500 (Sine output power 500 VA)

Analog Amplifier BAA 500
Sine output powerRMS: 500 VA
Frequency range: DC – 20000 Hz
Total mass: 18 kg
Dimensions WxHxD: 440 x 90 x 290 mm
Data Sheet Amplifier BAA 500

Amplifier BAA 500-T (Sine output power 500 VA)

Analog Amplifier BAA 500-T

with zero-point regulation

Sine output powerRMS: 500 VA
Frequency range: DC – 20000 Hz
Total mass: 29 kg
Dimensions WxHxD: 483 x 170 x 450 mm
Data Sheet Amplifier BAA 500-T

Amplifier BAA 500-MSC (Sine output power 500 VA)

Analog Amplifier BAA 500-MSC

with blower control for internal shaker cooling

Sine output powerRMS: 500 VA
Frequency range: DC – 20000 Hz
Total mass: 37 kg
Dimensions WxHxD: 562 x 211 x 550 mm
Data Sheet Amplifier BAA 500-MSC

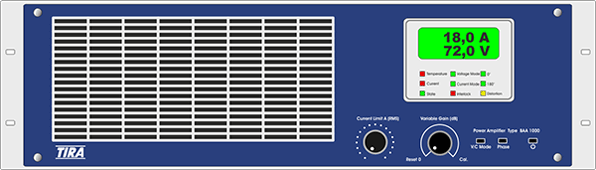

Amplifier BAA 1000 (Sine output power 1200 VA)

Analog Amplifier BAA 1000
Sine output powerRMS: 1200 VA
Frequency range: DC – 20000 Hz
Total mass: 35 kg
Dimensions WxHxD: 483 x 146 x 585 mm
Data Sheet Amplifier BAA 1000

Amplifier BAA 1000-E (Sine output power 1200 VA)

with external field power supply

Sine output powerRMS: 1200 VA
Frequency range: DC – 20000 Hz
Total mass: 57 kg
Dimensions WxHxD: 483 x 293 x 585 mm
Data Sheet Amplifier BAA 1000-E

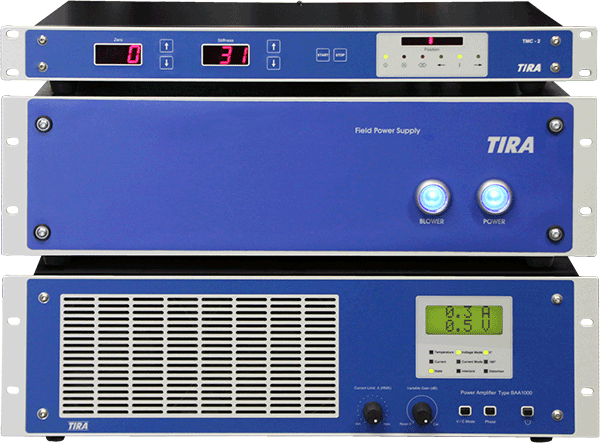

Amplifier BAA 1000-ET (Sine output power 1200 VA)

Analog Amplifier BAA 1000-ET

with external field power supply and zero-point regulation

Sine output powerRMS: 1200 VA
Frequency range: 2 – 20000 Hz
Total mass: 61kg
Dimensions WxHxD: 483 x 370 x 585 mm
Data Sheet Amplifier BAA 1000-ET
