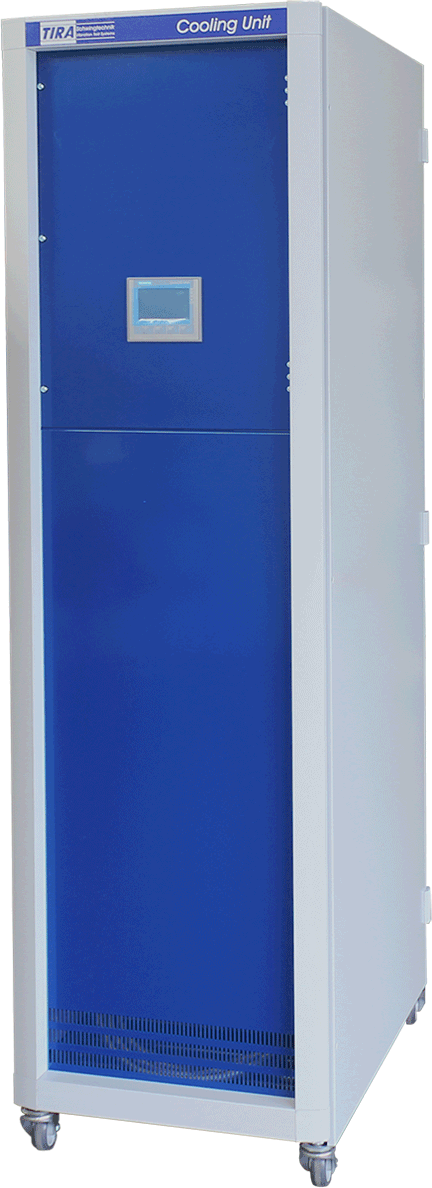

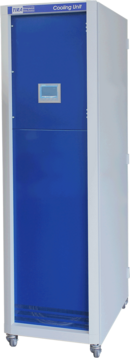

Cooling unit for water-cooled shakers

Water cooling units

  • Water cooling unit for shakers 74 kN to 300 kN
  • Integrated is the complete primary circuit of the shaker cooling and the hydraulics for the hydrostatic guide bearings.
  • The extraction of the heat is carried out by a customer-provided secondary-process water circuit
  • Monitoring of all circuits by several pressure gauges and flow indicators
  • Multifunctional display
  • Connected to the shaker by hoses with self-sealing couplings that are free from leakage
  • Closed primary circuit to prevent evaporation and pollution
  • Integrated demineralisation and monitoring of conductance
  • Reduced water consumption by controlling the process water flow
  • Good accessibility by designing the front and side walls as swing doors
  • Designed as compact mobile device

C 59412 (for water-cooled shakers with a nominal force of 74 kN to 125 kN)

Supply temperature: 5-15 °C
Volumeflow at max. supply temperature: 10 m³/h
Supply pressure –static: less or equal to 800 kPa
Hose connection – thread: G 1 1/2"
Dimensions WxHxD: 800 x 2200 x 900 mm
Total mass: ~300 kg

C 59430 (for water-cooled shakers with a nominal force of 130 kN to 300 kN)

Supply temperature: 5-15 °C
Volumeflow at max. supply temperature: 15 m³/h
Supply pressure –static: less or equal to 800 kPa
Hose connection – thread: G 1 1/2"
Dimensions WxHxD: 800 x 2200 x 1100 mm
Total mass: ~500 kg
