Oil-film guided slip tables

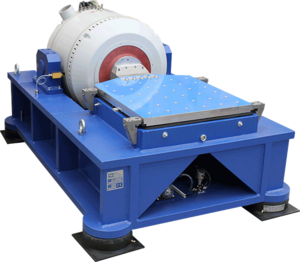

15 kN shaker with slip table 24 x 24 inch

Increasing demands on vibration testing require additional slip table systems, also ensuring tests in horizontal direction on large and heavy specimens in mounting position. The Monobase design allows quick and precise alignment and coupling of shaker to the slip table. Shaker and slip table are mounted on a common frame.

The TIRA Monobase slip tables are available in different versions:

  • Index XS: for vibration test system: TV 5220, TV 54216
  • Index S: for vibration test systems: TV 50350
  • Index SM: for vibration test systems: TV 55240
  • Index M: for vibration test systems: TV 56280
  • Index L: for vibration test systems: TV 51010, TV 57315
  • Index XL: for vibration test systems: TV 59322, TV 59327, TV 59335
  • Index XXL: for vibration test systems: TV 59349 - TV 59412
  • Index XXXL: for vibration test systems: TV 59413, TV 59416, TV 59420
  • Index LX: for vibration test system: TV 59430

Models XXXL and LX on request.

Oil-film slip tables consist of a precision grinded and lapped natural granite block with a magnesium plate that slides on an oil film. Four linear guides guarantee the lateral guidance of the slip plate and minimize transverse motion.

Special features:

  • Integrated oil pan
  • Non-contact displacement monitoring (only with AIT-System)
  • 100 mm displacement possible (with the appropriate shaker)

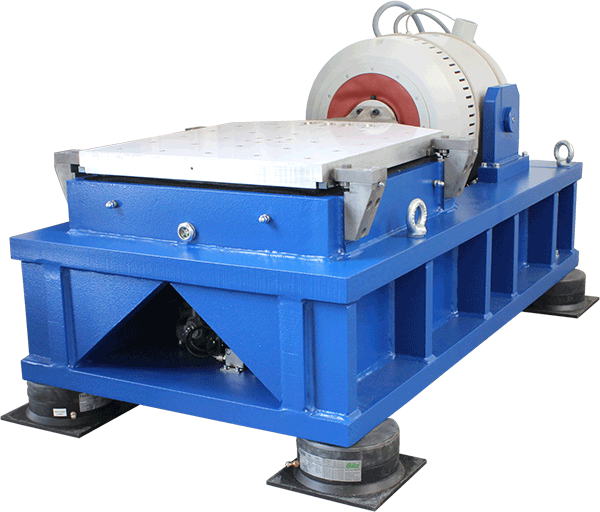

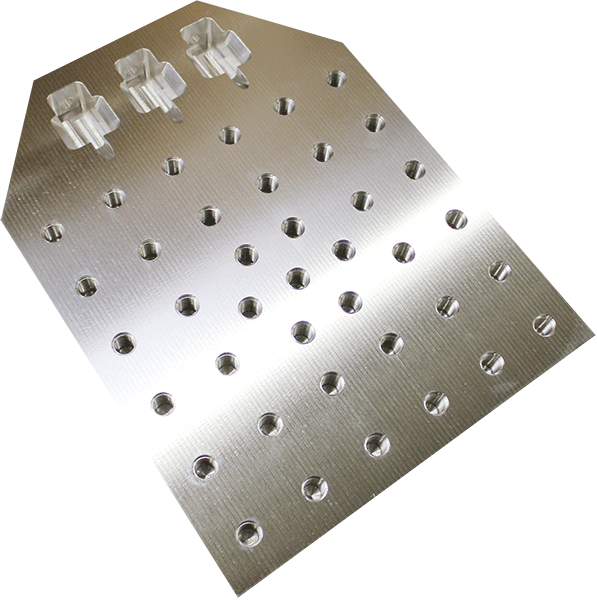

Slip table TGT MO 12 (Mounting area 305 x 305 mm)

Model XS
Mass of slip plate: 8.5 kg
Max. testing object mass: 100 kg
Dimensions Model XS (LxWxH): 950 x 600 x 550 mm
Dimensions Model S (LxWxH): 1150 x 750 x 750 mm
Dimensions Model SM (LxWxH): 1500 x 1050 x 900 mm
Dimensions Model M (LxWxH): 1500 x 1050 x 900 mm

Slip table TGT MO 18 (Mounting area 458 x 458 mm)

Model S
M ass of slip plate: 18 kg
Max. testing object mass: 300 kg
Dimensions Model XS (LxWxH): 1250 x 650 x 550 mm
Dimensions Model S (LxWxH): 1350 x 950 x 750 mm
Dimensions Model SM (LxWxH): 1600 x 1050 x 900 mm
Dimensions Model M (LxWxH): 1700 x 1100 x 900 mm
Dimensions Model L (LxWxH): 1600 x 1200 x 950 mm

Slip table TGT MO 20 (Mounting area 508 x 508 mm)

Model S
Model L
Mass of slip plate: 22 kg
Max. testing object mass: 400 kg
Dimensions Model XS (LxWxH): 1350 x 700 x 550 mm
Dimensions Model S (LxWxH): 1350 x 850 x 750 mm
Dimensions Model SM (LxWxH): 1650 x 1100 x 900 mm
Dimensions Model M (LxWxH): 1650 x 1100 x 900 mm
Dimensions Model L (LxWxH): 1700 x 1200 x 950 mm
Dimensions Model XL (LxWxH): 2050 x 1350 x 1200 mm

Slip table TGT MO 24 (Mounting area 610 x 610 mm)

Model M
Mass of slip plate: 31 kg
Max. testing object mass: 550 kg
Dimensions Model S (LxWxH): 1500 x 950 x 750 mm
Dimensions Model SM (LxWxH): 1800 x 1100 x 900 mm
Dimensions Model M (LxWxH): 1800 x 1100 x 900 mm
Dimensions Model L (LxWxH): 1800 x 1250 x 950 mm
Dimensions Model XL (LxWxH): 2150 x 1600 x 1250 mm

Slip table TGT MO 30 (Mounting area 762 x 762 mm)

Model XL
Weight of slip plate: 47 kg
Max. testing object weight: 1000 kg
Dimensions Model M (LxWxH): 1950 x 1100 x 900 mm
Dimensions Model L (LxWxH): 1 950 x 1100 x 950 mm
Dimensions Model XL (LxWxH): 2500 x 1400 x 1250 mm

Slip table TGT MO 36 (Mounting area 915 x 915 mm)

Mass of slip plate:80.5 kg
Max. testing object mass:1750 kg
Dimensions Model L (LxWxH):2050 x 1250 x 1000 mm
Dimensions Model XL (LxWxH):2300 x 1600 x 1250 mm
Dimensions Model XXL (LxWxH):2700 x 2000 x 1600 mm

Slip table TGT MO 39 (Mounting area 991 x 991 mm)

Mass of slip plate:100 kg
Max. testing object mass:2200 kg
Dimensions Model L (LxWxH):2150 x 1750 x 1000 mm
Dimensions Model XL (LxWxH):2450 x 1650 x 1250 mm
Dimensions Model XXL (LxWxH):2800 x 2000 x 1600 mm

Slip table TGT MO 48 (Mounting area 1200 x 1200 mm)

Mass of slip plate: 142 kg
Max. testing object mass: 2400 kg
Dimensions Model L (LxWxH): 2200 x 1800 x 1000 mm
Dimensions Model XL (LxWxH): 2700 x 1600 x 1250 mm
Dimensions Model XXL (LxWxH): 3000 x 1950 x 1500 mm

Slip table TGT MO 60 (Mounting area 1500 x 1500 mm)

Model XXL (Shaker 55 kN)
Model XXL (Shaker 125 kN, water-cooled)
M ass of slip plate: 243 kg
Max. testing object mass: 3500 kg
Dimensions Model L (LxWxH): 2850 x 1800 x 1000 mm
Dimensions Model XL (LxWxH): 3050 x 1800 x 1200 mm
Dimensions Model XXL (LxWxH): 3150 x 1700 x 1400 mm

Slip table TGT MO 70 (Mounting area 1800 x 1800 mm)

Mass of slip plate:302 kg
Max. testing object mass:4000 kg
Dimensions Model L (LxWxH):3150 x 2100 x 1000 mm
Dimensions Model XL (LxWxH):3250 x 2100 x 1200 mm
Dimensions Model XXL (LxWxH):3450 x 2000 x 1400 mm

Slip table TGT MO 78 (Mounting area 2000 x 2000 mm)

Mass of slip plate:390 kg
Max. testing object mass:4500 kg
Dimensions Model XL (LxWxH):3550 x 2300 x 1400 mm
Dimensions Model XXL (LxWxH):3650 x 2300 x 1400 mm
