Calibration-Vibration Test Systems 100 N to 800 N
- Used for calibration of sensors
- Ceramic vibration system
- Very high utilizable frequency range up to 25 kHz
- Special guide system

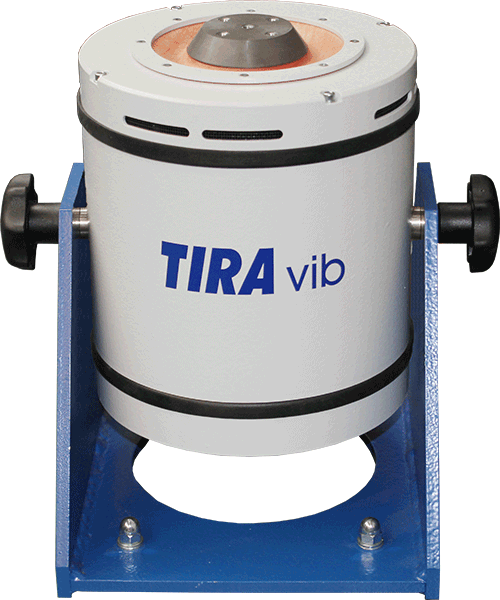

Calibration-Vibration Test System TV 51110-C (Rated force 100 N)
| Rated force Sinepk/RandomRMS: | 100/50 N |
| Frequency range: | 10 – 25000 Hz |
| Main resonance frequency: | >25000 Hz |
| Max. displacement Pk-Pk: | 4 mm |
| Max. acceleration Sine/Random: | 25/12 g |
| Total mass of shaker with trunnion: | 33 kg |
| Dimensions of shaker WxHxD: | 200 x 265 x 200 mm |
| Armature diameter: | 54 mm |
| Max. power consumption: | 80 VA |
| Data sheet TV 51110-C (Rated force 100 N) |

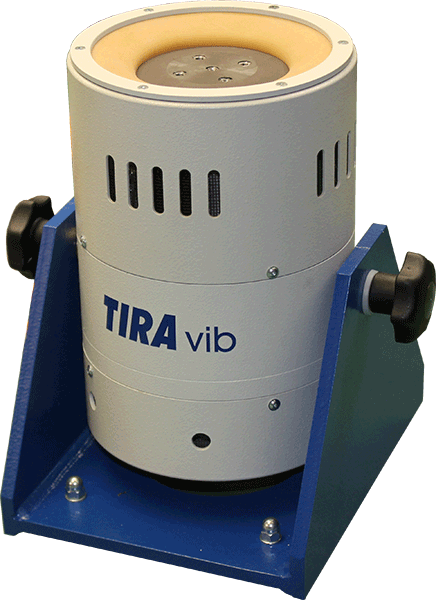

Calibration-Vibration Test System TV 51110-AC (Rated force 100 N)
Special air bearing
| Rated force Sinepk/RandomRMS: | 100/50 N |
| Frequency range: | 1 – 20000 Hz |
| Main resonance frequency: | >19000 Hz |
| Max. displacement Pk-Pk: | 25,4 mm |
| Max. acceleration Sine/Random: | 17/8 g |
| Total mass of shaker with trunnion: | 18 kg |
| Dimensions of shaker WxHxD: | 210 x 258 x 176 mm |
| Armature diameter: | 50 mm |
| Max. power consumption: | 350 VA |
| Data sheet TV 51110-AC (Rated force 100 N) |
Calibration-Vibration Test System TV 51120-C (Rated force 200 N)
| Rated force Sinepk/RandomRMS: | 200/100 N |
| Frequency range: | 10 – 25000 Hz |
| Main resonance frequency: | >25000 Hz |
| Max. displacement Pk-Pk: | 4 mm |
| Max. acceleration Sine/Random: | 51/25 g |
| Total mass of shaker with trunnion: | 42 kg |
| Dimensions of shaker WxHxD: | 200 x 265 x 200 mm |
| Armature diameter: | 54 mm |
| Max. power consumption amplifier/blower: | 350/460 VA |
| Data sheet TV 51120-C (Rated force 200 N) |

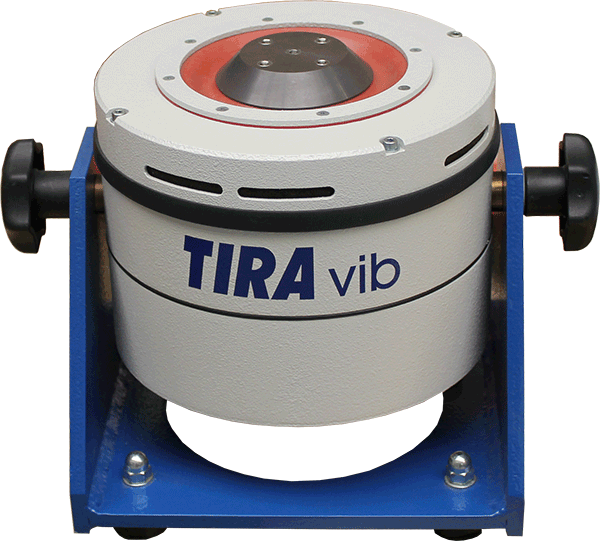

Calibration-Vibration Test System TV 51140-C (Rated force 400 N)
| Rated force Sinepk/RandomRMS: | 400/200 N |
| Frequency range: | 10 – 20000 Hz |
| Main resonance frequency: | >19000 Hz |
| Max. displacement Pk-Pk: | 4 mm |
| Max. acceleration Sine/Random: | 68/34 g |
| Total mass of shaker with trunnion: | 21 kg |
| Dimensions of shaker WxHxD: | 200 x 175 x 200 mm |
| Armature diameter: | 54 mm |
| Max. power consumption amplifier/blower: | 1.22/1.7 kVA |
| Data sheet TV 51140-C (Rated force 400 N) |

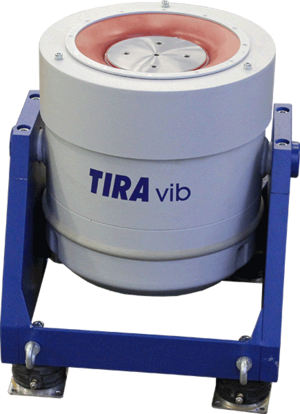

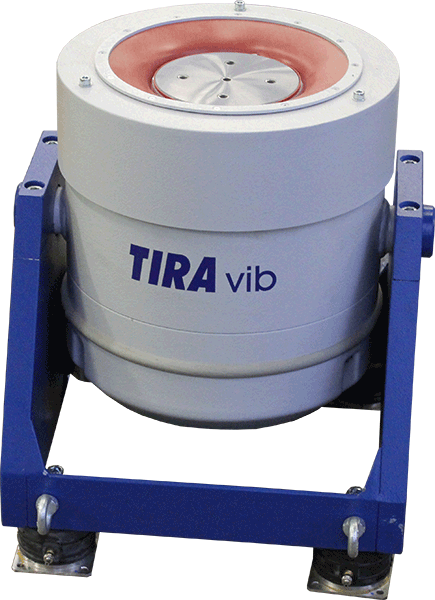

Calibration-Vibration Test System TV 5220-C (Rated force 800 N)
| Rated force Sinepk/RandomRMS: | 800/400 N |
| Frequency range: | 1 – 20000 Hz |
| Main resonance frequency: | >13000 Hz |
| Max. displacement Pk-Pk: | 25.4 mm |
| Max. acceleration Sine/Random: | 60/30 g |
| Total mass of shaker with trunnion: | 110 kg |
| Dimensions of shaker WxHxD: | 396 x 454 x 400 mm |
| Armature diameter: | 130 mm |
| Max. power consumption amplifier/blower: | 1.4/1.6 kVA |
| Data sheet TV 5220-C (Rated force 800 N) |
