Inertial-Vibration Test Systems 125 N to 650 N
- Application of dynamic forces to large structures
- Coupling at any angle within 360 degree
- Excitation by permanent magnets
- Special spring system provides optimal guidance
Inertial-Vibration Test System TV 51112-IN (Rated force 125 N)
| Rated force Sinepk/RandomRMS: | 125/70 N |
| Frequency range: | 2 – 2000 Hz |
| Max. displacement Pk-Pk: | 9 mm |
| Max. acceleration Sine/Random: | 0,98/0,54 g |
| Total mass of shaker: | 13 kg |
| Dimensions of shaker DxH: | 170 x 209 mm |
| Coupling: | M12 |
| Max. power consumption: | 100 VA |
| Data sheet TV 51112-IN (Rated force 125 N) |
Inertial-Vibration Test System TV 51125-IN (Rated force 250 N)
| Rated force Sinepk/RandomRMS: | 250/150 N |
| Frequency range: | 2 – 2000 Hz |
| Max. displacement Pk-Pk: | 9 mm |
| Max. acceleration Sine/Random: | 2/1,2 g |
| Total mass of shaker: | 13 kg |
| Dimensions of shaker DxH: | 170 x 209 mm |
| Coupling: | M12 |
| Max. power consumption amplifier/blower: | 400/460 VA |
| Data sheet TV 51125-IN (Rated force 250 N) |

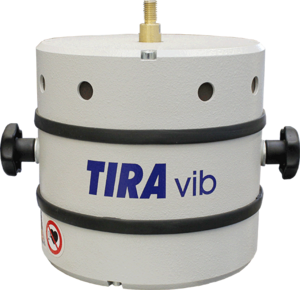

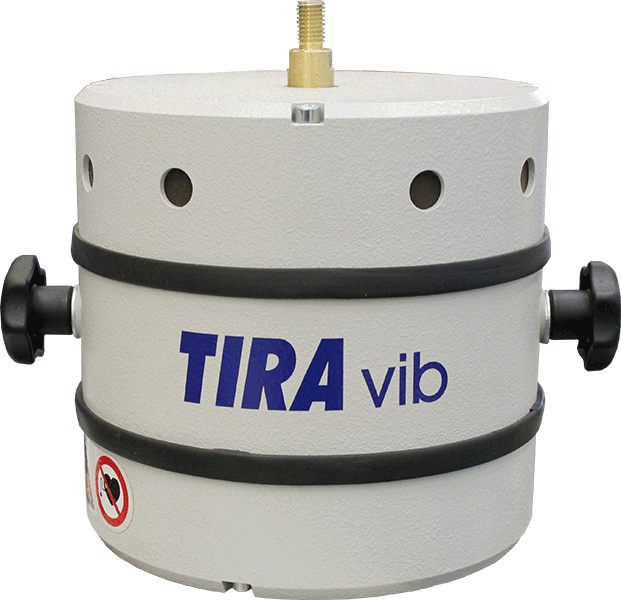

Inertial-Vibration Test System TV 51140-IN (Rated force 400 N)
| Rated force Sinepk/RandomRMS: | 400/311 N |
| Frequency range: | 2 – 2000 Hz |
| Max. displacement Pk-Pk: | 9 mm |
| Max. acceleration Sine/Random: | 2.8/2 g |
| Total mass of shaker: | 16 kg |
| Dimensions of shaker DxH: | 200 x 224 mm |
| Coupling: | M12 |
| Max. power consumption amplifier/blower: | 2.7/1.4 kVA |
| Data sheet TV 51140-IN (Rated force 400 N) |
Inertial-Vibration Test System TV 51165-IN (Rated force 650 N)
| Rated force Sinepk/RandomRMS: | 650/420 N |
| Frequency range: | 2 – 2000 Hz |
| Max. displacement Pk-Pk: | 9 mm |
| Max. acceleration Sine/Random: | 2.6/1.7 g |
| Total mass of shaker: | 26 kg |
| Dimensions of shaker DxH: | 200 x 279 mm |
| Coupling: | M12 |
| Max. power consumption amplifier/blower: | 2.7/1.4 kVA |
| Data sheet TV 51165-IN (Rated force 650 N) |
