Vibration Test Systems (shakers) 9 N to 400 N

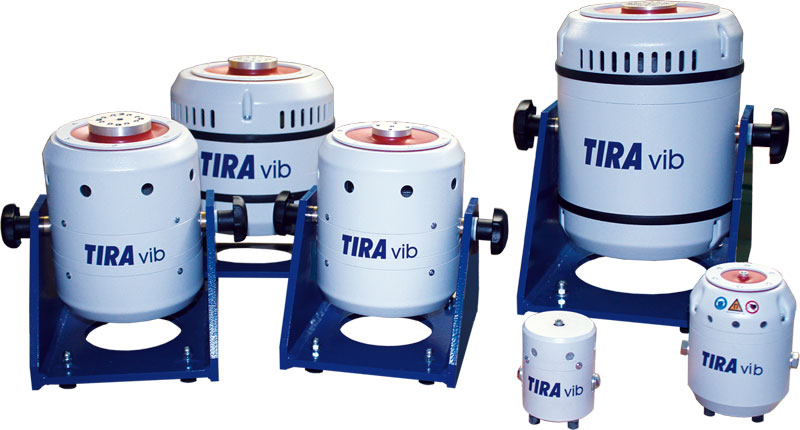

Permanent magnet shakers with nominal force 9 N to 400 N
Permanent magnet driven shakers from 9 N to 400 N

These vibration exciters (also called shakers) use permanent magnets and are available as portable and stationary systems for simulating ambient vibration conditions. Robust design ensures a long service life, and typical applications include structure analysis and testing smaller subassemblies. These shakers are characterized by high lateral and axial stiffness and come in lightweight construction as specified by industrial users.

New rare earth magnets have been added to the range of conventional Alnico magnets, reducing weight from 36 kg to 12 kg for easy handling particularly in mobile applications. Our shakers have proven their worth in environmental labs, universities and industrial production lines both for components and calibration. These complete systems enable testing in accordance with national and international standards such as DIN, ISO, BS, MIL, IEC and ASTM.

Login

User login

Enter your username and password here in order to log in on the website. When you are logged in new content will be available.

Forgot your password?

Hier können Sie sich registrieren. Sign up here.

Vibration Test System TV 50009 (Rated force 9 N)

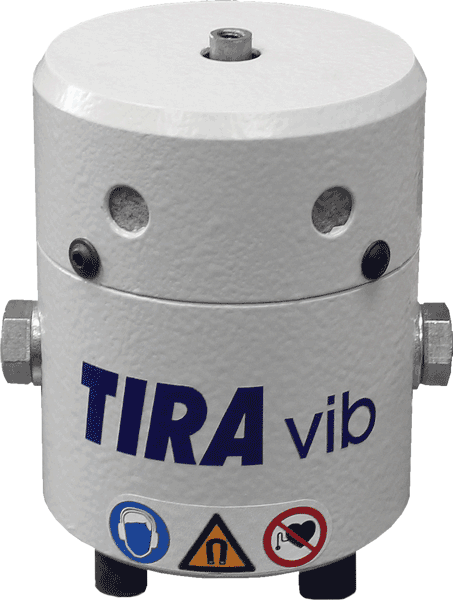

Shaker / Vibration exciter S 50009 Force 9 N
Rated force Sinepk:9 N
Frequency range:2 – 20000 Hz
Main resonance frequency:>13000 Hz
Max. displacement Pk-Pk:3 mm
Max. acceleration Sine:60 g
Shaker total mass with trunnion:2.2 kg
Shaker dimensions WxHxD: 135 x 131 x 100 mm
Armature diameter:M4 Gewinde
Max. power consumption:50 VA

Vibration Test System TV 50018 (Rated force 18 N)

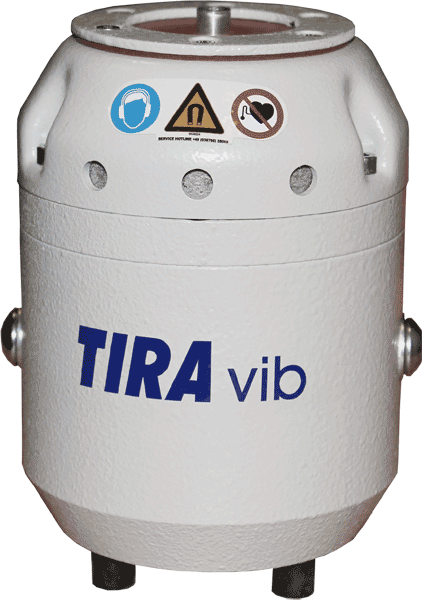

Shaker / Vibration exciter S 50018 Force 18 N
Rated force Sinepk:18 N
Frequency range:2 – 20000 Hz
Main resonance frequency:>13000 Hz
Max. displacement Pk-Pk:5 mm
Max. acceleration Sine:65 g
Shaker total mass with trunnion:5 kg
Shaker dimensions WxHxD:135 x 170 x 150 mm
Armature diameter:M4 Gewinde
Max. power consumption:50 VA

Vibration Test System TV 51110 (Rated force 100 N)

Shaker / Vibration exciter S 51110 Force 100 N

Shaker with light-weight design using a rare earth magnet

Rated force Sinepk /RandomRMS:100/70 N
Frequency range:2 – 7000 Hz
Main resonance frequency:>6500 Hz
Max. displacement Pk-Pk:13 mm
Max. acceleration Sine /Random:45/30 g
Shaker total mass:12 kg
Shaker dimensions WxHxD:256 x 248 x 210 mm
Armature diameter:60 mm
Max. power consumption:80 VA

Vibration Test System TV 51120 (Rated force 200 N)

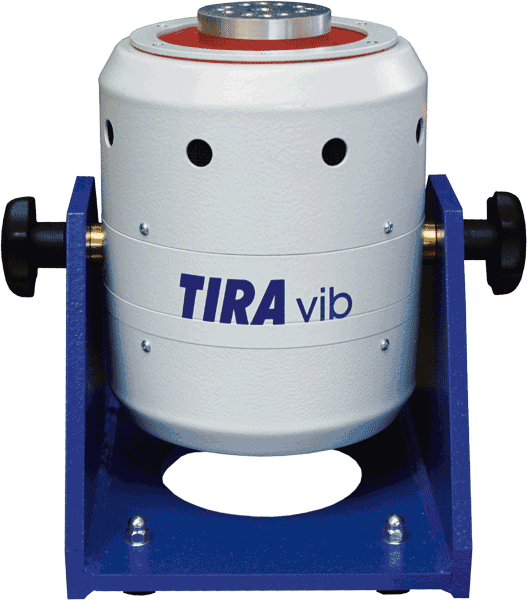

Shaker / Vibration exciter S 51120 Force 200 N

Shaker with light-weight design using a rare earth magnet

Rated force Sinepk /RandomRMS:200/140 N
Frequency range:2 – 7000 Hz
Main resonance frequency:>6500 Hz
Max. displacement Pk-Pk:13 mm
Max. acceleration Sine/Random:89/62 g
Shaker total mass:12 kg
Shaker dimensions WxHxD:256 x 248 x 210 mm
Armature diameter:60 mm
Max. power consumption amplifier/blower:350/460 VA

Vibration Test System TV 52110 (Rated force 100 N)

Shaker / Vibration exciter S 52110 Force 100 N
Rated force Sinepk /RandomRMS:100/50 N
Frequency range:2 – 7000 Hz
Main resonance frequency:>5700 Hz
Max. displacement Pk-Pk:15 mm
Max. acceleration Sine/Random:50/25 g
Shaker total mass:36 kg
Shaker dimensions WxHxD:234 x 335 x 290 mm
Armature diameter:60 mm
Max. power consumption:80 VA





Vibration Test System TV 52120 (Rated force 200 N)

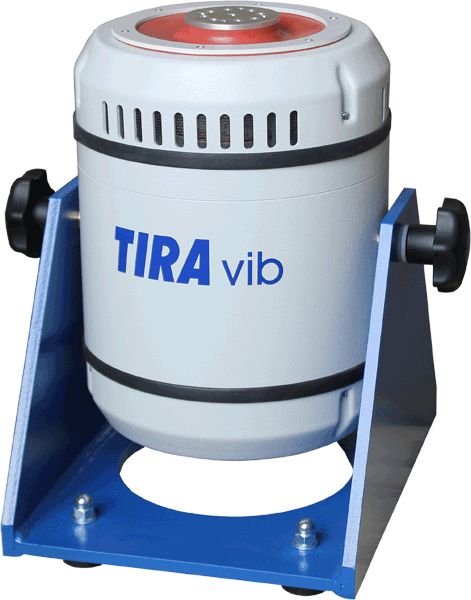

Shaker / Vibration exciter S 52120 Force 200 N
Rated force Sinepk/RandomRMS:200/100 N
Frequency range:2 – 7000 Hz
Main resonance frequency:>5700 Hz
Max. displacement Pk-Pk:15 mm
Max. acceleration Sine/Random:100/50 g
Shaker total mass:36 kg
Shaker dimensions WxHxD:234 x 335 x 290 mm
Armature diameter:60 mm
Max. power consumption amplifier/blower:350/460 VA

Vibration Test System TV 51140 (Rated force 400 N)

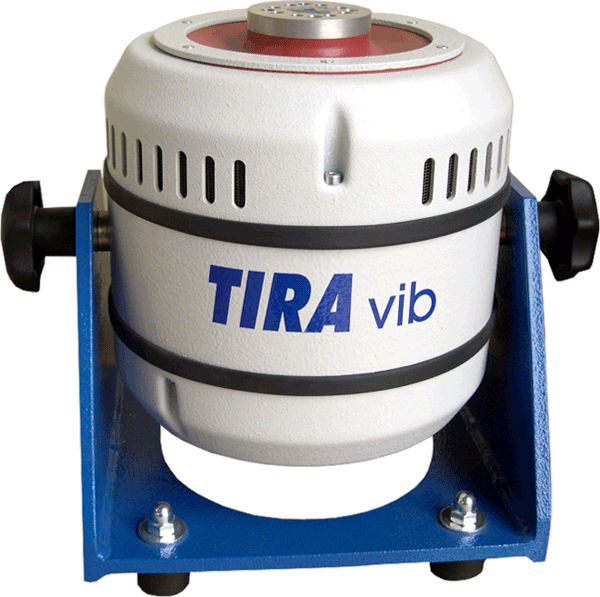

Shaker / Vibration exciter S 51140 Force 400 N
Rated force Sinepk/RandomRMS:400/311 N
Frequency range:2 – 6500 Hz
Main resonance frequency:>5500 Hz
Max. displacement Pk-Pk:20 mm
Max. acceleration Sine/Random:100/50 g
Shaker total mass:18 kg
Shaker dimensions WxHxD:350 x 267 x 210 mm
Armature diameter:60 mm
Max. power consumption amplifier/blower:1.22/1.4 kVA
